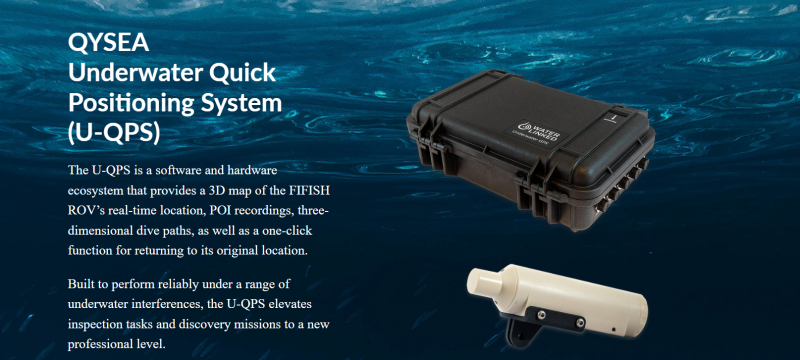

QYSEA U-QPS Component Accessories

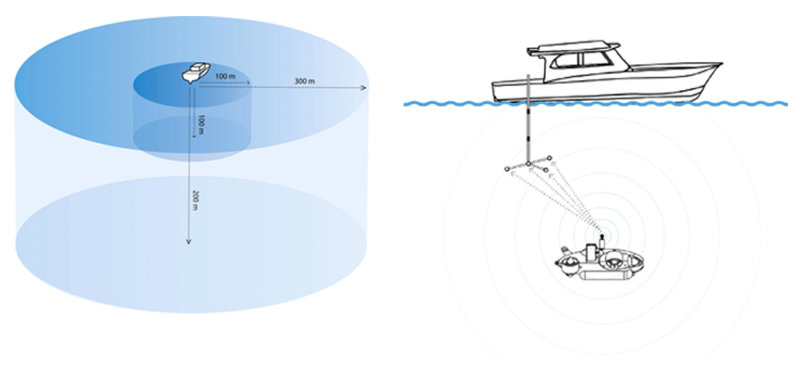

QYSEA U-QPS Model

U-QPS-R100 (100m Working Range)
U-QPS-R300 (300m Working Range)

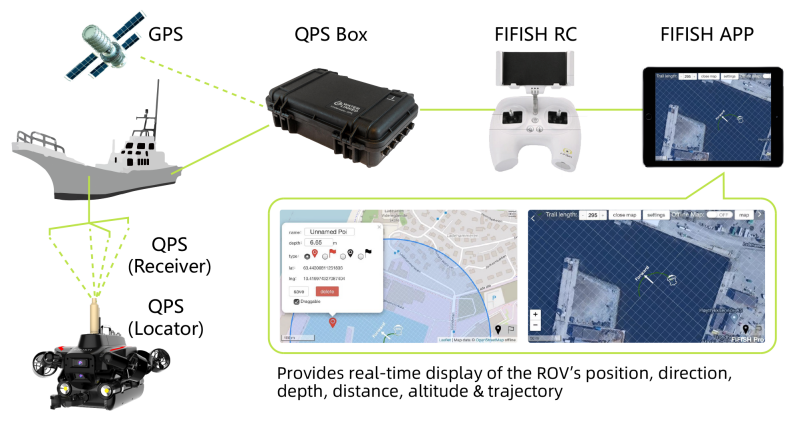

QYSEA U-QPS-IK Software Introduction

Display of ROV’s real-time position, angle, depth, altitude, and distance

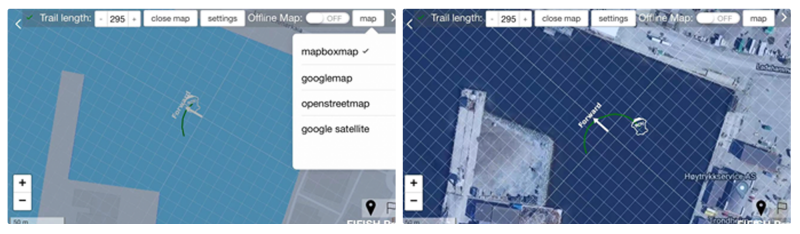

Combining various mapping software to display and track the ROV’s path of movement

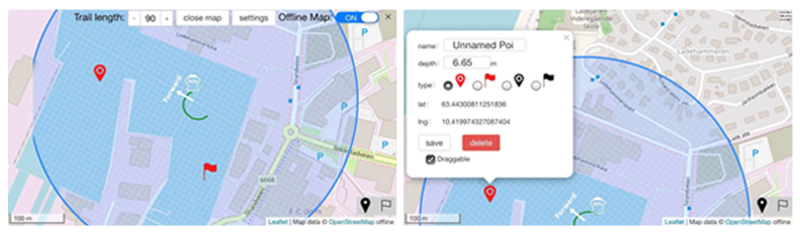

Set Point-of-interest (POI) locations at any time

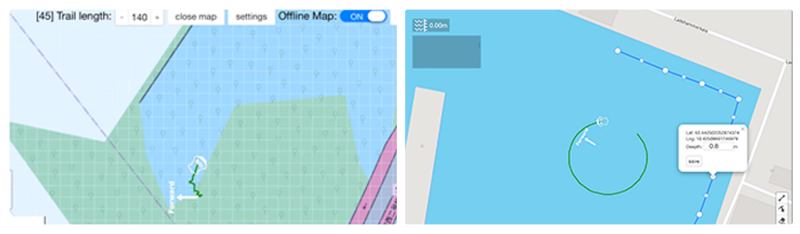

Track and record the ROV’s movement path

Real-time position display

QYSEA U-QPS-HW Specs: Topside

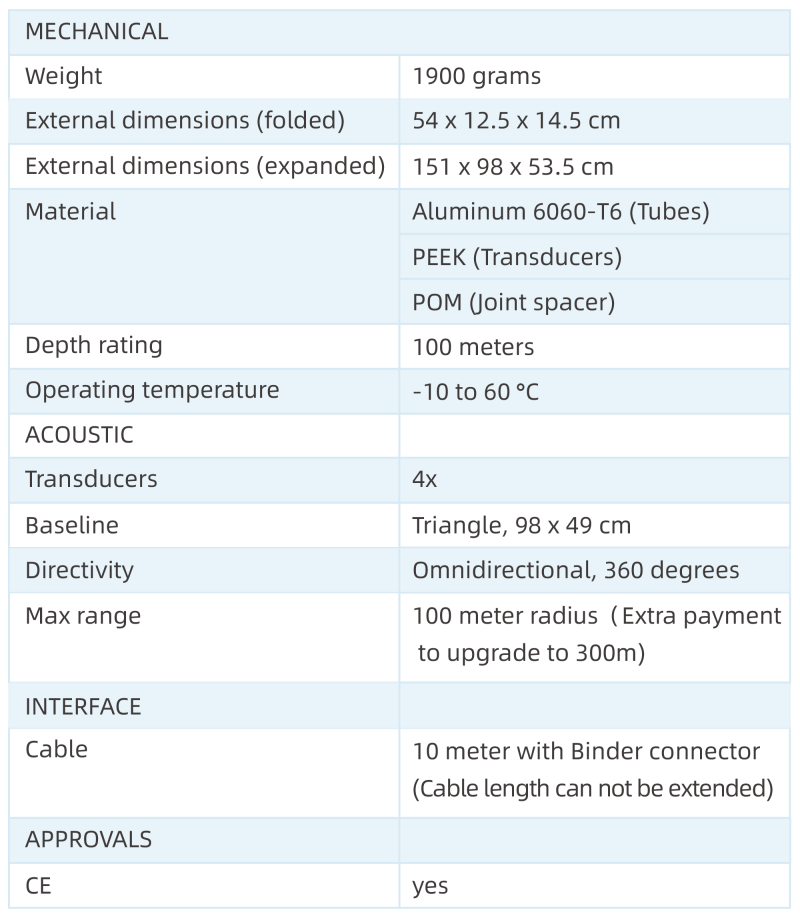

QYSEA U-QPS-HW Specs: Antenna

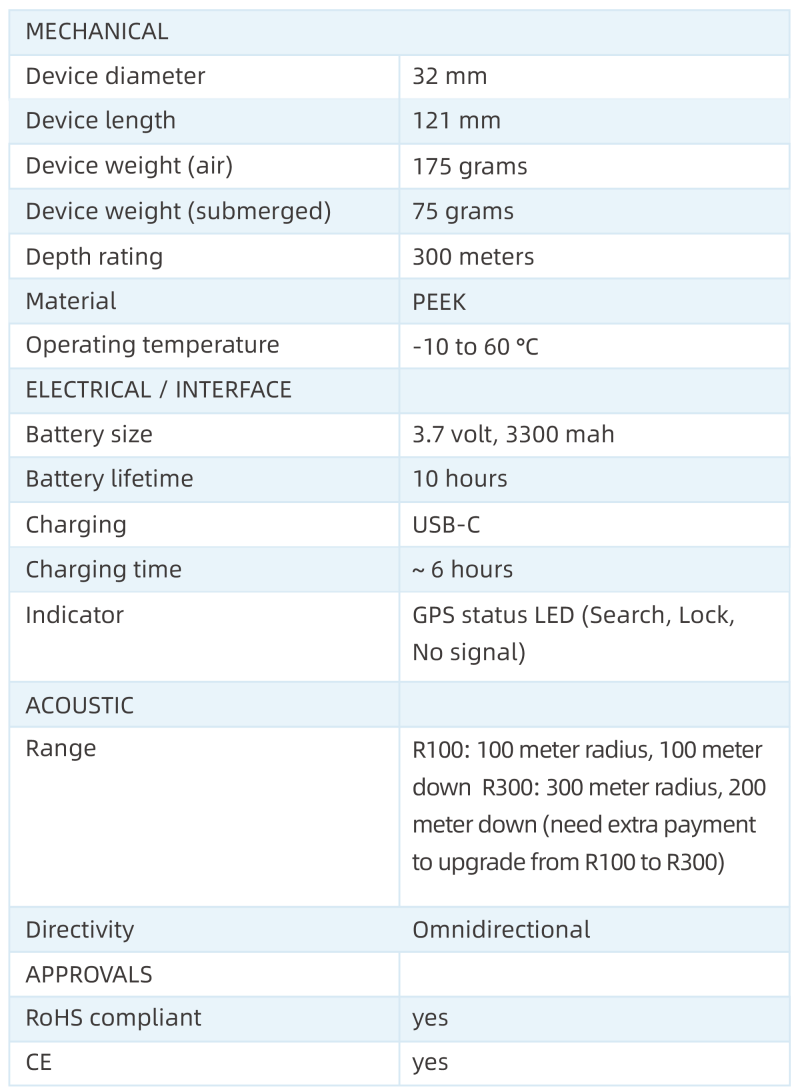

QYSEA U-QPS-HW Specs: Locator
